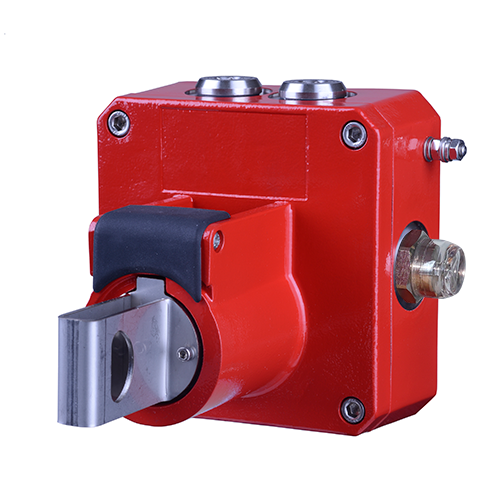

| STExCP8-PB | Version: Dual Action Push Button |
| Switch: | Sealed – IP67 |
| Ingress protection: | EN/IEC 60529 – IP66/67/68 |
| Enclosure matl: | 316L Stainless Steel Paint finish to ISO 12944-6 CX, C5VH & C5H |
| Colour: | RAL3000 Red (others available on request) |
| Cable entries: | 2 x M20x1.5 top and 1 x M20x1.5 side. Can be rotated to provide 2 x bottom and 1 x side entries |
| Stopping plugs: | 2 × 316 Stainless Steel plugs as standard Brass and Nickel plated plugs optional |
| Terminals: | DIN rail 8 × 2.5mm² SAK2.5 or Termination board featuring 6 × 2.5mm² terminals plus 4 x dedicated EOL & Series terminals |
| Earth: | External M5 earth connection |
| Relative Humidity: | R.H. 95% @ 20°C |
| MTBF: | 479.6 years / 4,201,680 hours - MIL 217 |
| Weight: | 4.6Kg/10.14Ibs |
| Voltage Range: | Max input Current: |
| 250Vac Max | 5.0A max |
| 48Vdc Max | 1.0A max |
| 24Vdc Max | 3.0A max |
| Note | EOL and Series Diode Values: Accessories: |
| xxx: | Zener value: |
| 3V3 | 3.3V Diode |
| 4V7 | 4.7V Diode |
| 5V1 | 5.1V Diode |
| 5V6 | 5.6V Diode |
| 6V2 | 6.2V Diode |
| 6V8 | 6.8V Diode |
| 10V | 10V Diode |
| 12V | 12V Diode |
| SP65-0001-A4SP65-0002-A4 | Pole Mount Bracket Kit St/St A4 (316) Sunshade – St/St A4 (316) |
| Part Code: | Identifier: | Description: |
|---|---|---|
| Product type: | STExCP8PB | Dual action latching push button with manual reset |
| Switch type: [s] | S D | SPCO/SPDT DPCO/DPDT |
| Terminals: [t] | D X P | DIN Rail 8 × SAK2.5 Addressable module – select below Termination board: 6 × 2.5mm² terminals plus 4 × EOL & Series terminals |
| Lift flap: [l] | N | Not available |
| Cable entries:[e] | A B C D E F G | 3 x M20x1.5mm 2 × 1/2" NPT – adaptors 2 × 3/4" NPT – adaptors 2 x M25x1.5mm – adaptors 1 × 1/2" NPT – adaptor 1 × 3/4" NPT – adaptor 1 x M25x1.5mm – adaptor |
| Stopping plug/ adaptor material: [m] | S | Stainless Steel |
| Duty label/Equipment tag: [d]: | 1 2 3 4 5 6 7 | No Duty label, no Equip. tag Duty label Stainless Steel Duty label St/St + Equip. tag Duty label Metalised Polyester Duty label M. Poly. + Equip. tag Equip. tag only Special label requirement |
| Product version: [v] | A H Z M C P E S D L NOTE: | UL, IECEx, ATEX, DNV, Ex EAC, INMETRO, PESO Honeywell TC809B1008 module* Ziton A45E-2 module* Johnson Controls MIM800 module* Hochiki CHQ-CP2 monito* Apollo XP95 mini module* Consilium IC10 module* Siemens XTRI-M module* Securiton SDI 82X-I module* Simplex 4090-9051 Supervised IAM* * Versions with addressable modules do not include UL approval |
| Product option: [o] | 1 W 2 Y P V Note: | Standard product Alternate EOL & series wiring Duplicated EOL and/or series devices Duplicated EOL and series – alternate wiring Parallel wiring with or without EOL/series Parallel with EOL and series alternate wiring Duplicated EOL/series and Parallel wiring only available with switch type ‘D’ |
| Enclosure colour: [x] | R B N Y V S K M Z | Red Blue Green Yellow Red/White Yellow/Black Black Magenta Red/Black |
| LED indicator: [u] | N L C | No LED required LED with 1.5K ballast resistor LED without ballast resistor |
| E.O.L.Module: [e]optional | ExxxR ED1 ExxxZ | Resistor value in Ohms e.g. E470R = 470 Ohm Diode IN4007 = ED1 Zener diode e.g. E5V1Z = 5.1V |
| Series Module: [s]optional | SxxxR SD1 SxxxZ | Resistor value in Ohms e.g. S1K5R = 1.5K Ohm Diode IN4007 = SD1 Zener diode e.g. S5V1Z = 5.1V |
