Operational communication

The system of operational and technological loud-speaking industrial communication

One system –
many solutions

INDUSTRONIC INTRON-X is modern modular IP platform for scalable solutions for Intercom, PA/GA and PA. Flexible interfaces for networking, integration of external communication and control systems together with modular system design of INTRON-X are suitable for all industrial communications needs and requirements.

Decentralization and
modular system

Reduced cable paths through decentralization increases design flexibility and lowers infrastructure costs. This concept applies to basic public address functions. INTRON-X modules take little space and are easy to use because of included cables with connectors and use of PoE.
One system – many solutions

Integrated solution based on modular equipment

Integration with client’ infrastructure
Our team provides options for integration with Customer system or offers standard modules.
Scenario programming
Programming of necessary triggering protocols for any security system according to pre-designed algorithms.
Equipment set
We complete the central equipment based on the customer’s needs and offer a unique solution based on our wide expertise.
Security and control
Together with the customer, we explore his business processes and offer a unique tailored solution for a particular enterprise. We use acoustic coverage approach and offer equipment for any working conditions.

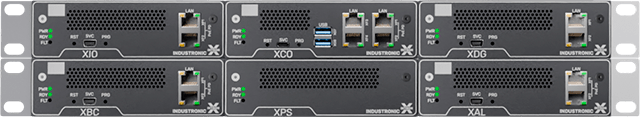

Cabinet’s components

Central cabinet modules

Module
1 XCO 001
Analogue line module

XAL module allows to connect up to 6 analog audio components - analog intercoms, or third-party systems. In total 24 bi-directional potential-free control inputs and outputs.

Module
8 XDG 001
Digital Gateway Module

Connects digital terminal devices to INTRON-X, such as digital intercoms, digital amplifiers, digital input/output modules. Up to 8 terminal devices connections. Device redundant connection for 2 independent XDG modules. Permanent automatic monitoring of all connected terminal devices, connection cables and power supplies.

Module
24 XIO 001
Input/Output module

Up to 24 bi-directional potential-free control inputs and outputs. Can be used for: fault messages informing, relay control, integration with security systems by dry contacts.

Module
6 XAL 001
Analogue line module

XAL module allows to connect up to 6 analog audio components - analog intercoms, or third-party systems. In total 24 bi-directional potential-free control inputs and outputs.

Module
500W XPS 48V
Power supply

High efficiency power supply including fan cooling with thermal relay. Protection against excess temperature, excess load / short circuit, surge; wide input voltage range.

NPA
IP Public Address Device

Multi-channel IP acoustic amplifier NPA is used to drive up to 8 speakers lines. Using IP the amplifier can be connected to the INTRON-X PA/GA system anywhere in the network. The built-in loudspeaker monitoring system continuously monitors short circuits, ground leaks, line breaks and impedance changes.

Module
4 XBC 001
Beacon control module

The XBC module is used to operate and monitor up to 4 lines of flash lamps. Compatible with 115 / 230 V AC or 24 / 48 / 60 V DC beacons. Line or loop types beacon connection. Connecting different types of beacons: Xenon, LED, etc. Continuous automatic line monitoring of the flashing warning beacons for cable break, short circuit and ground leakage (option).

NVR 02
Voice IP-Recorder

The xxx NVR 01 series IP voice recorder is a professional multi-channel system for recording voice data transmitted via VoIP protocols, which allows you to record and play back conversations of individual intercom devices through active SIP recording in the INTRON-X digital system.

Flatpack2
DC Power System

Consists of: 19” 2U basket, containing up to 4 FlatPack2 rectifier modules with Smartpack controller, load and battery disconnect contactors (LVLD LVBD), load distribution and battery connection units, CAN, LVBD, W370 x D89 x H482, 5 kg without rectifiers
Backup

Permanent system availability

PA/GA systems are safety-critical equipment that have to withstand harsh conditions and be reliable during emergency situations to ensure the safety of personnel, equipment and the environment.
Hot standby
system (n+1/n+n)
Maximum flexibility in critical components redundant configuration
A+B system
Optimal failure protection – no single point of failure
A+B together
with (n+1/n+n) mix
Highest reliability of the system and its components
Certification

Certified quality

INDUSTRONIC has a strong commitment to quality, exceptional reliability and availability of its systems as well as a comprehensive service offering for its customers. Our systems comply with a wide range of international standards and have all the necessary type approvals and certifications for a variety of industrial applications. We strive to maintain and continuously develop our certification standards to meet the highest requirements of industrial communication.
DIN EN
54-16
Fire detection and fire alarm systems
NFPA
72
National Fire Alarm and Signaling Code
DIN EN
81
Safety rules for the construction and installation of lifts
DIN EN
50849
Sound systems for emergency purposes
IEC
50695
PA-General-Emergency-Alarm-System, Communication-System for marine applications
DEN EN
80-21
Passenger and goods passenger lifts
DEN EN
81-28
Remote alarm on passenger and goods passenger lifts
For business

Our advantages

  • Advanced IP technology
    INTRON-X supports PoE (Power over Ethernet) data transmission technology. The connection is made via twisted pair cable in conjunction with the power supply.
  • Easy scalability
    From small to large systems. The INTRON-X system provides for the rapid implementation of additional security and communication systems for your company.
  • Decentralised installation possible
    Flexible adaptability to objects and requirements through distributed, fully decentralised installation of individual components.
  • Flexible redundancy options
    High reliability thanks to flexible redundancy concepts that can be adapted to individual budgets and customer requirements.
  • Integration with third-party systems
    Integration into existing IT infrastructures is possible.
  • Backward compatibility
    Easy integration with an installed INTRON D plus system of the previous generation is possible.

Operational signalling
between workshops

An operational and technological industrial communication system designed specifically for harsh and hazardous environments where reliability, durability, convenience and ease of use are vital.

Loudspeaker communication

At gas, oil, metallurgical, nuclear and power industries enterprises, as well as at railway station complexes, airports and other facilities requiring uninterrupted automated system operation. The distinctive features of the product include reliability and ease of operation of the equipment.
If a signal is received from the triggered fire alarm system, the programmed scenario will be automatically executed: switching off general and process ventilation, start of smoke extraction, closing valves, stopping the production process.
INTRON-X provides flexible integration with external sound and light alarm systems, as well as emergency and civil defence systems. If you already have such systems installed in your facility, we can provide command transmission, audio messaging, and add programmable activation sequences in various scenarios.
With a simple press of a key, visitors can request a call to the control room or janitor. As soon as the operator / janitor accepts the call, a full-duplex connection is established, allowing both callers to talk and listen simultaneously. Video streams from cameras at the entrances further facilitate access control. In this way, security personnel are always aware who wants to enter the premises.
With the connection of office PBX via SIP protocol it becomes possible to call subscribers of INTRON systems from the office phone or vice versa, an INTRON subscriber can make a call to the office phone. When using intercom stations with support for connecting a handset or headset, the conversation can be conducted in duplex mode (voice is transmitted simultaneously in both directions).

Explosion-proof intercom system

We offer a wide range of modifications of intercom systems for solving communication tasks in different projects. In the process of working with the customer, we determine the company's needs and select the ideal set of components and control modules for the device.
Horn speaker
Clear sound quality in low and high ambient noise environments
Equipment identification
Free space to apply a device tag
Protected label
To display the call number or location of intercom station in the plant
Microphone
Noise-compensating microphone with dynamic compression
Dial keypad
To enter call numbers; use the * key to speak and the # key to delete the call number entered
Industrial momentary rocker switch
Freely programmable, integrated red LEDs for call and busy signaling, protective labels, designed for use with industrial gloves
Cover plate
To protect module openings
II 2G Ex db eb ib [ib] IIC T4 Gb
Equipment group
Equipment category
Marking of types of explosion protection
Equipment protection level
Temperature class
Explosion group
II
All areas except mining
2G
Gas category zone 2
Ex
Compliant with DIN EN 60079
db
Flameproof enclosure
eb
Increased safety
ib
Intrinsically safe category ib
[ib]
Intrinsically safe output
IIC
Most ignitable gas group
T4
Surface temperature <135 °C (<275 °F)
Gb
Gas zone 1
INDUSTRONIC innovative solutions

Technology and modularity for maximum flexibility and safety

INDUSTRONIC products have the latest technology and modular design, providing flexibility. Explosion-proof and weatherproof intercom stations can be equipped with a dialer, two-position switches, membrane keypads and expansion units.

It is also possible to install a handset, headset, or foot switch. For noisy environments, sound-absorbing UV- and marine-resistant hoods and optional accessories are available.

Explosion-proof enclosure

Industronic DX Series explosion-proof intercom stations are marked Ex db eb ib IIC T4 Gb. All critical electronics are hidden in special aluminium enclosures, eliminating the possibility of an explosion spreading to the outside environment.

All-weather use

Industronic intercom stations have a highly sealed housing. The ingress of dust, external solid objects and water is excluded. The equipment can withstand high and low temperatures - from -40 to +70. The rating of protection is IP66. Complies with international standards IEC 60529 / DIN 40050.

Two-position switch

The instantaneous communication channel switch is designed with optical interrupt technology. Unlike a conventional contact group switch, the possibility of sparking is excluded.

Cable entry

The intercom station has two outputs M20 for an unarmored cable with a diameter of 4-13 mm and one M25 for an unarmored cable of 7-17 mm, as well as a connector for connecting a ground cable.
DUSTRON mobile app

Always under control

Calls and alerts

With DUSTRON your mobile device becomes a portable intercom station. You don't need to go to a fixed intercom station to make calls or announcements.

With Push-to-Talk (PTT) function you can instantly establish two-way communication or organize a group conversation. You can also communicate in duplex or speakerphone mode. In addition, communication can be made even more convenient by using a headset (Bluetooth).

As an alternative to mobile radio communication, PTT group communication is possible with several mobile or other terminal devices.

Alarms and warnings

With the app you can quickly react to unexpected incidents and threats. Alarms can be activated quickly and easily via the touch screen. With DUSTRON you can also contact emergency services outside your company. In addition authorized security personnel can always intervene directly by making announcements that override the current signal (Voice-over-Alarm).

Control functions

Convenient control functions make it easy to perform access control tasks (e.g. opening gates).

You can also activate the ventilation system or deactivate individual system components if necessary.

Maintenance and commissioning

DUSTRON simplifies the commissioning and maintenance of INDUSTRONIC systems.

System states are transmitted to a mobile device, allowing maintenance personnel to react quickly and receive instant feedback on whether the fault has been fixed and whether the system is operating again without errors.

Loudspeaker volume levels can now be conveniently adjusted directly on the spot.

Playback of recorded announcements

If you missed a general announcement, group message or alarm, all incoming messages are stored on the mobile device and can be played back at any time.

Contacts and call history

The application provides a list of contacts with all subscribers in the system. Called subscribers can be saved to favorites.

All incoming and outgoing calls are saved in a call history. Each record shows a date, time and a caller number.

Explosion-proof
digital intercom systems

Various modular user controls allow the device to be customised according to customer and project specific needs at any time.
Depending on the tasks of your company, simplex, duplex or half-duplex communication between subscribers can be set up.
The digital signal is transmitted over standard telecommunication twisted pair cable with phantom power up to 4 kilometres away.
If necessary, an additional flashing warning beacon can be installed.
It is possible to install a 25 W audio power amplifier.
New control components can be fitted to the unit at any time.
Various modular user controls are available, allowing the unit to be customised to suit the needs of the customer and the specific project at any time.
